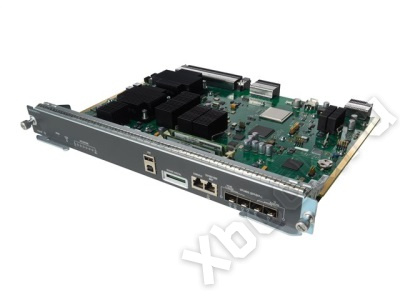

Модуль супервизора Cisco WS-X45-SUP7L-E= в Краснодаре

Vendor Code	WS-X45-SUP7L-E=

General
Device Type	Control processor
Processor / Memory / Storage
Processors Installed	1 x 1.5 GHz
RAM	2 GB SDRAM
Flash Memory	1 GB
Networking
Form Factor	Plug-in module
Connectivity Technology	Wired
Routing Protocol	PIM-SSM
Remote Management Protocol	RMON 1, RMON 2
Performance	Switching capacity : 520 GbpsPer-slot switching capacity : 48 GbpsIPv6 routing : 110 MbpsIPv4 routing : 225 Mbps
Capacity	QoS hardware entries : 64000Security services entries : 64000Virtual interfaces (VLANs) : 4094IPv4 routes : 64000IPv6 routes : 32000MAC addresses : 55000Spanning Tree Protocol instances : 12000Switched virtual interfaces (SVIs) : 4094NetFlow entries : 128000ARP entries : 47000
Features	IPv6 support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), NetFlow, universal power over Ethernet (UPOE)
Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
Communications
Supported Flash Memory Cards	SD Memory Card
Expansion / Connectivity
Expansion Slots	2 (total) / 2 (free) x SFP+2 (total) / 2 (free) x SFP (mini-GBIC)
Interfaces	1 x management - RJ-451 x 1000Base-T (management) - RJ-451 x USB - Type A
Compatible Slots	1 x expansion slot
Miscellaneous
MTBF	183,341 hours
Compliant Standards	NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CAN/CSA C22.2 No. 60950-1
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - advance parts replacement - lifetime - response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
